Friday, 12 May 2017

To Vrai or Not To Vrai - Another White Labs Controversy?

The Short Version

Brewing practices in both home and commercial breweries have undergone somewhat of a revolution over the past decade, leading to a cohort of brewers who approach brewing from a much more technical & microbiological perspective. As a direct consequence of this, some commercial yeast products have been revealed to be other than what the manufacturers have stated - in at least some cases, with the manufacturer themselves being unaware that their product was a yeast/bacteria different from what they believed they had. In this blog post we reveal that the yeast sold by White Labs as Brettanomyces vrai (WLP648) - ironically a yeast mis-identified previously by the same manufacturer - is, in fact, a blend of two different yeasts - both are Brettanomyces bruxellensis, but are separate strains...although strains which appear to have evolved from a recent common ancestor.

Some Background

Brewing practices have changed dramatically over the past decade, with procedures such as sour worting, wild captures, and home/brewery isolated yeasts going from rare experiments to commonplace brewing practices. This change in brewing practices has led to some issues with commercially sourced yeasts - as one example, the growth of practices such as sour worting have revealed yeast-contamination issues in packaged "pure" strains of Lactobacillus. Similarly, the more microbiology-centric practices of home and commercial brewers has led to some unexpected revelations, including identification of "Brettanomyces trois" as a unusually flavourful strain of conventional brewers yeast (Saccharomyces cerevisiae). I was part of that effort, and the results of my and others work in identifying this yeast are the subject of a previous post. According to the manufacturer, this mis-identification was due to a chance contamination of "Brett trois" by this strain of Sacc, leading to the release of the "correct" strain of Brettanomyces, under the 'vrai' (French for 'true') strain name.

But is the strain name accurate - is this truly a pure strain of Brettanomyces? Most of us assumed so, even though this strain shows some characteristics when used as a pure culture for primary fermentation that run contrary to how most Brettanomyces behave when used for primary fermentation. When used in primary fermentation, most Brettanomyces act much like Saccharomyces - they rapidly ferment the wort, usually leave some residual sugars behind, and don't evolve over ageing as much as beers do when Brettanomyces are added during secondary fermentation - e.g. there is a lack of phenol production and super-attenuation. Beers brewed with WLP648 do ferment out fairly quickly, but tend to be more highly attenuated than beers brewed with other strains of Brettanomyces as the primary yeast. In addition, beers brewed with WLP648 also show some development during ageing similar to that of beers with Brettanomyces added to secondary - i.e. emergence of phenolic "funk", and additional attenuation of the beer. So is WLP648 simply a more aggressive Brettanomyces than other common brewing strains, or is something else going on?

To our knowledge, it was assumed by other brewers that Brett vrai was simply a somewhat more attenuative strain of Brett - that is - until my friend and brewing collaborator (and co-author of this blog post) Devin streaked WLP648 on a wort-agar plate. Initially, the plate appeared as one would expect of a pure culture - all colonies on the plate appearing similar in size, shape and colouration. But over a longer incubation time smaller colonies began to appear between the larger colonies, leading us to speculate that there may be a second strain of yeast in WLP648.

Using a combination of classical microbiology, microscopy, gene sequencing and test batches, Devin and I explored the two strains of yeast present in WLP648, demonstrating that Brett vrai contains two unique strains of Brettanomyces bruxellensis, strains which share a relatively recent common ancestor, but are otherwise quite different in their morphology and brewing characteristics.

Experimental details can be found below the fold.

First Signs of Contamination

Figure 1: WLP648 on malt-agar
As mentioned in the intro, Devin saw the first signs of something fishy when he left WLP648 on a malt-agar plate for a few extra days - at first the plate appeared normal, with the scattered colonies of WLP648 appearing roughly the same size and shape. Several days later a second set of colonies began to appear - pin-prick sized colonies scattered between the larger colonies (Figure 1). For simplicity, these will be referred to as "Large Colony Variant" (LCV) and "Small Colony Variant" (SCV) for the rest of this blog post. The massively different size and growth kinetics of the LCV versus SCV can be indicative of one of two things. Firstly, the culture could be a mix of two distinct organisms. Alternatively, the yeast mixture could contain both normal WLP648, as well as respiratory mutants (sometimes called petite mutants). The latter arise when a strain of yeast gain a mutation in the energy-generating genes of the mitochondria, or in some cases, in genes which prevent the synthesis or uptake of key nutrients - in either case, the mutations prevent yeast from fully utilising the sugars or nutrients in the media, leading to slow growth and small colonies. At this time it is not clear which of these possibilities are correct. One thing is clear though - in the culture the SCV's outnumber the LCV's at least by 20:1.

Figure 2: Micrograph of WLP648
Devin next placed a small sample, taken directly from the tube received from white labs, onto a microscope slide and took the micrograph shown in Figure 2. As is typical of Brettanomyces, the morphology of the cells is heterogeneous, with cells ranging from Saccharomyces-like ovoids through to elongated cells forming pseudohyphae, through to very small, irregularly shaped cells. While the varied shape among the larger cells is expected of Brettanomyces, the large portion of tiny cells is somewhat unusual - a portion of small cells is expected, as these normally represent cells which have recently budded. However, it would be unlikely for more than half the population of cell being recently budded yeast; especially considering these are yeasts out of a tube a few months old, and therefore not expected to be dividing. This is not proof-positive that there are two distinct organisms in WLP648, but it is suggestive.

Figure 3: Malachite-green stained pure cultures of LCV
(left) and SCV (right).
I then generated separate pure cultures of the LCV and SCV. This was not trivial as the SCV's were more numerous and tended to grow under LCV colonies - ultimately, I ended up diluting the sample in water and doing a spread-plate to get a pure LCV culture. The purified SCV and LCV cultures showed the same growth dynamics and colony sizes as they did in the mixed culture. LCM and SCV cells were then stained with the dye malachite green, to improve their visibility in micrographs, and imaged (Figure 3). The LCV displayed a mixed morphology, but universally were large cells that tended to grow in aggregates. The SCV cells were universally smaller than LCVs, and formed into networks of pseudohyphae. While the cell size differences is not diagnostic of petite mutants versus differing strains/species, the presence of aggregates versus pseudohypahe is not likely due to petite mutations in the same strain, and rather is suggestive of the presence of two unique strains/species, each with their own pattern of cell division and inter-cellular adhesion.

Although it is hard to believe that the high proportion of SCV's in Devin's tube of yeast could have come from contamination when he opened the tube, or was a one-off contamination during packaging by the manufacturer, or due to mis-handling by the home brew shop where the yeast was purchased, it was necessary to confirm the presence of both the LCV and SCV in a second lot of WLP648. As such, we purchased a second tube of WLP648 from a different homebrew shop, confirming with the shop owner that the yeast was of a different lot than the first lot used (Table 1). This tube was cleaned externally with Wescodyne (a lab-grade germicidal agent), opened in a sterile culture hood, and plated on freshly autoclaved media. Both the LCV and SCV were present in this second lot of WLP648, present in the manufacturers' tube at roughly the same proportions, showing similar growth kinetics, and with similar morphology in micrographs (not shown).

Table 1: WLP648 lot numbers and expiry dates
BrewerYeast Lot NumberExpiry Date
Devin1030320May 22, 2017
Bryan1029514April 30, 2017

Species  Identification by ITS Sequencing

Figure 4: ITS PCR of LCV
(middle) and SCV (right).
Left lane is a size-
standard.
Next, a firm genetic identification of LCV and SCV was performed using ITS ribosomal sequencing, as outlined in my previous blog posts (1, 2, 3). The first step of this process is to use PCR to amplify a specific portion of the yeast ribosome termed the "Internal Transcribed Spacer" (ITS) region. This is the preferred DNA region for identifying yeast species, as it tends to evolve at a rate where it varies minimally within a species, but varies sufficiently between species to allow for species identification. The ITS of both the LCV and SCV amplified well, producing a DNA fragment of the expected ~800 base-pair size (Figure 4).

The resulting DNA molecules were then purified and submitted for sequencing, and the resulting sequences BLASTed to search for the closest match in the NCBI database, as well as aligned against my personal collection of representative ITS sequences (Table 2, Figure 5).


StrainITS SequenceNCBI ID
LCVCCGTAGGTGA ACCTGCGGAA GGATCATTAC AGGATGCTGG
GCGCAAGCCC GTGCAGACAC GTGGATAAGC AAGGATAAAA
ATACATTAAA TTTATTTagt tTagtCAAGA AAGAATTTTA
AAACTTTCAA CAATGGATCT CTTGGTTCTC GCGTCGATGA
AGAGCGCAGC GAATTGCGAT ACTTAATGTG AATTGCAGAT
TTTCGTGAAT CATCGAGTTC TTGAACGCAC ATTGCGCCCT
CTGGTATTCC GGAGGGCATG CCTGTTTGAG CGTCATTTCC
TTCTCACTAT TTAGTGGTTA TGAGATTACA CGAGGGTGTT
TTCTTCAAAG GAAAGAGGGG AGAGTGAGGG GATAATGATT
TAAGGTTTCG GCCGTTCATT ATTTTTTTCT TCTCCCCCAG
TTATCAAGTT TGACCTCAAA TCAGGTAGGA GGACCCGCTG
AACTTAAGCA TATCAATAAG CGGA
Brettanomyces bruxellensis
(100% identity)
SCVTCCGTAGGTG AACCTGCGGA AGGATCATTA CAGGATGCTG
GGCGCAAGCC CGTGCAGACA CGTGGATAAG CAAGGATAAA
AATACATTAA ATTTATTTAG TTTAGTCAAG AAAGAATTTT
AAAACTTTCA ACAATGGATC TCTTGGTTCT CGCGTCGATG
AAGAGCGCAG CGAATTGCGA TACTTAATGT GAATTGCAGA
TTTTCGTGAA TCATCGAGTT CTTGAACGCA CATTGCGCCC
TCTGGTATTC CGGAGGGCAT GCCTGTTTGA GCGTCATTTC
CTTCTCACTA TTTAGTGGTT ATGAGATTAC ACGAGGGTGT
TTTCTTCAAA GGAAAGAGGG GAGAGTGAGG GGATAATGAT
TTAAGGTTTC GGCCGTTCAT TATTTTTTTC TTCTCCCCCA
GTTATCAAGT TTGACCTCAA ATCAGGTAGG AGGACCCGCT
GAACTTAAGC ATATCAATAA GCGGAGGAAA GGATCATTAC
AGGATGCTGG G
Brettanomyces bruxellensis
(100% identity)

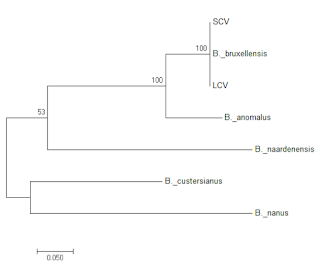

Figure 5: Phylogenic tree of LCV and SCV relative to representative
ITS sequences from a range of Brettanomyces species.

So both strains are clearly and unambiguously Brettanomyces bruxellensis, leading to the question of whether we are looking at petite mutants, or whether they are different strains.

Strain Identification by RAPD PCR

Figure 6: RAPD PCR of LCV and
SCV with the OPK3, OPD19 and
OPC20 primers. Left lane is a size-
standard.
Identifying strains by genetic means is more difficult than species, as strains tend to vary much less between each other than do species. As such a different genetic approach needs to be taken - namely, we will "fingerprint" the strains to see if there is differences. We used an older approach for this termed "RAPD PCR", which uses the same PCR method used above to purify the ITS region, but with one important difference. Normal PCR uses stringent conditions to ensure that a specific segment of DNA, located between two PCR primers, is selectively amplified. In contrast, RAPD uses short primers under conditions where primer-DNA binding is less stringent, in order to amplify semi-random, but reproducible, segments of DNA. The genetic variation between strains should alter the patterns of bands produced, allowing for identification of different strains. We used three primers - OPC20 (ACTTCGCCAC), OPD19 (CTGGGGACTT) and OPK03 (CCAGCTTAGG), which have previously been shown to work well for strain ID in Brettanomyces.

The procedure is fairly simple; a each PCR reaction is run with extracted DNA and one of the above primers. The 35 PCR cycles are run using a 94C denaturation step (1 min), 35C annealing step (1 min) and a 2 min elongation at 72C. For those not familiar with PCR, that means we are "photocopying" regions of the genomic DNA, using a low annealing temperature to pick up differences between strains (higher annealing temperatures copy specific regions of DNA, lower is less specific).

Figure 7: Intensity plots of RAPD
PCR gel in Figure 6.
The banding pattern for each PCR reaction can be observed in Figure 6. As you can see the OPK3 and OPD19 primer produced the same banding pattern (ignoring band intensity, which is not diagnostic), indicating that these are either the same, or very closely related, strains. In contrast, the OPC20 primer, which is most sensitive to different strains, produced two unique bands in the SCV not seen in the LCV, a pattern that is more obvious in an intensity profiles of the OPC20 lanes (Figure 7). As you can see, the OPC20 primer revealed that the SCV has two unique bands not seen in the LCV.

What does this mean? The near-identical OPK3 and OPD19 banding pattern means that these strains are close-cousins, rather than radically different strains. Indeed, this shared banding pattern is consistent with a recent common ancestor in the past century or so. But the presence of unique bands in the OPC20 lanes tells us that these two strains of yeast have differentiated from each other fairly significantly.

In other words, these are unique strains of Brettanomyces, and not merely minor variations (i.e. petite versus non-petite) within a single strain. This also eliminates the possibility that this is an environmental contaminant Devin or I picked up when opening the tubes - the likelihood of having such a similar strain of Brettanomyces floating around both of our personal breweries (and my workplace) is negligable, meaning the only place that these two yeasts could have come from is the white-labs vial.

Tasting Notes

A rare stove-top brew
Of course, the big question is what kind of beer do these yeast make. To test this I prepared a small (6L) batch of moderately fermentable wort (stove-top mashed at 67C, 60 min), comprised of 1.25 kg of 2-row malt and 4 g Simco hops (60 min), to provide ~20 IBU of bitterness. The brew went a little better than expected, so the starting gravity of the test batch was 1.054 (rather than the expected 1.044). The beer was split into two 4L jugs, small starters of LCV and SCV pitched, and the fermenters held at 22C (warm, but intended to bring out the ester character of the yeasts). 10 days latter the beer was decanted into plastic bottles and force-carbed using a carbonation cap...which then sat in the fridge for a few weeks while Devin and I tried to find time to do a tasting.

Tasting took place on May 9th, with both Devin and I sampling the beers side-by-side:

Left: SCV, Right: LCV
SCV:
  • FG: 1.014, 5.3% ABV
  • Attenuation: 73%
Appearance: Something odd had happened to this beer as it was brewed or aging, and it took on a dull copper-beige colour. Poured with a thin and quickly disappating head. It wasn't anything pretty to look at.

Aroma: The aroma of this beer was amazing - an intense dark cherry aroma dominated, with a touch of barnyard or wet hay-like funk in the background.

Flavour: The flavour of this beer matched the aroma; intense fruit character with strong notes of dark cherry and red wine. Some funk flavours were present in the background. Finish was sweet and refreshing.

Mouthfeel: Medium-bodied and whetting. After taste was sweet and fruit, with a noticeable acidity.

Overall: For such a simple beer, this one turned out great. Fruity with a hint of funk; I could see using this yeast in a darker farm house ale, or perhaps in some sort of a kettle sour.

LCV:
  • FG: 1.016, 4.9% ABV
  • Attenuation: 69%
Appearance: Identical to the SCV, an off-putting copper-grey with minimal head.

Aroma: The aroma of this beer was quite different; an intense mousy/musty aroma dominated, with only the faint aroma of fruit in the background.

Flavour: Here Devin and I disagree. I found the flavour to be an overwhelming, to the point of being unpleasant, mousy/stale funk, behind which was a mild "generic fruit" character. Devin was less negative about the character, although we both agreed on the particular flavours present. Finish was sweet, but with a strong funk note.

Mouthfeel: Much the same as the SCV; medium-bodied and somewhat refreshing.

Overall: To my palate, the funk of the LCV strain was overwhelming and unpleasant; I would not drink this beer, and if served it in a pub would send the pint back. Devin was less negative, but also thought that the LCV was a poor cousin to the SCV.

Blended Strain: I wasn't smart enough to ferment the test beer with both strains, but luckily Devin had a bottle of a similar beer made with Vrai (the same tube of Vrai the SCV and LCV were isolated from). I didn't take complete notes on Devins beer, but it very much split the middle between the LCV and SCV strains - mid-road on both the cherry and funk notes. One aspect that was unique was a skunky character that Devin noticed built over time. This was not the skunky character of light-struck hops, but rather a bona fide intense aroma much like that of musk. Again, I preferred the SCV over the blend, but the blend made a good beer.

I also brewed an IPA with Vria...which will be the topic of a future post. TLDR version would be that Vrai ruined my IPA.


Conclusions

What are They?
Given the growth and genetic differences, and the higher attenuation of the SCV compared to the LCV, we can conclusively state that these are not normal versus petite mutants of a single strain. Rather, these are two unique, but closely related strains. While they are minimally different genetically, the genetic changes they have undergone have led to a number of large changes in biology. Assuming the SCV descended derived from the LCV - the most likely interpretation of the RAPD data - these mutations led to a large decrease in cell volume, a change in the cell division or adhesion properties of the yeast, and led to lower POF gene activity (funk), higher expression of one or more of the 6 or so genes associated with ester production Atf1p, Atf2p, Eht1p, Eeb1p, EEB1 and Iah1p), and influenced some of the two dozen or so genes which affect cell volume.

Without a full genome sequence it is not possible to state exactly what occurred, but the fact that the SCV varies genetically from the LCV by the addition of between two to four OPC20 sites, it is most probable that the SCV is a descendant of the LCV, with the differentiation between the strains a product of the insertion of genetic materials. Again, without sequencing this is supposition, but insertions of new DNA is commonplace in yeast, usually occurring via transposons. Tansposons are mobile genetic elements which can made copies of themselves elsewhere in the genome. This ability to "copy" themselves means that they are common in the genome - your genome is ~44% transposon - but it also means that they can greatly influence the regulation of genes. In yeast, movement of transposons is fairly common, and is associated with large-scale changes in gene expression, and at least in the case of Saccharomyces, transposon-associated changes in gene expression account for some of the differences between yeast strains.

How Did White Labs Miss This?
I don't know what White Labs does behind the scenes to check their strains, but the fact that this has missed their attention (assuming the blend is not deliberate) is not surprising to me. Firstly, it was extremely difficult to separate the SCV from the LCV as the larger number of SCVs, combined with their slower growth rate, meant that each LCV colony grew on top of several SCV colonies. As such we had to go to great lengths to get a pure culture. Secondly, the much slower growth rate of the SCV meant that unless you specifically went out of your way to culture the plate for an extended period of time, you would not see the SCV colonies; even though they were mixed in with the LCVs.

Does it Matter?
From a brewery perspective, this probably doesn't matter. While the SCV produces a nicer beer (IMO; I love the intense cherry flavour), the blend itself produces a beer with a more balanced fruit:funk character. From a brewing-management position, the slower growth-rate of the SCV means that the characteristics of beers brewed with re-pitches of this blend may vary depending on when you repitch - yeast taken at high kraussen or soon after kraussen has fallen will be LCV-dominated, while beer that has aged for a while will have a more equal, or even SCV-dominated population. This may impact the overall flavour profile of the beer, although further experimentation will be required to see if that is the case.
